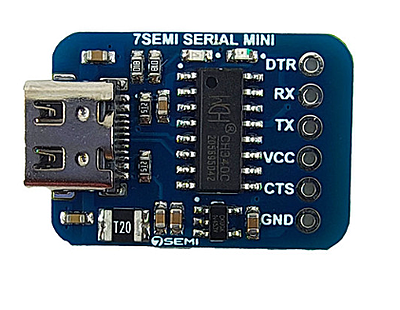

The 7Semi CH340C USB-C to Serial TTL Converter Breakout is a cutting-edge solution designed to seamlessly connect your devices. Equipped with a USB C type connector, this mini breakout board ensures convenient and reliable connectivity for your various applications.
Powered by the latest CH340C chip, this converter delivers exceptional performance and compatibility. Its comprehensive pinout, including DTR, RX, TX, VCC, CTS, and GND, makes it compatible with a wide range of devices, allowing for smooth communication and data transfer.
Whether you are working with GPS modules, microcontrollers, or other electronic components, the 7Semi CH340C USB-C to Serial TTL Converter Breakout provides the flexibility and versatility you need. Experience enhanced productivity and seamless integration with this advanced converter, empowering you to take your projects to new heights.
LEDs
There are two LEDs TX (Blue) and RX (Red) on the board and are connected to and correctly aligned to the Pins: RX and TX. This is a quick and easy way to observe the serial traffic.
Note: Product images are for reference only. The actual product may vary from the images shown.
USB to Serial Adapter Pins Overview
| Pin Label | Input/Output | Description |
|---|---|---|
| DTR | Output | Data Terminal Ready, Active Low |
| RX | Input | Serial Receive |
| TX | Output | Serial Transmit |
| VCC | Supply Output | Power supply 3.3V (Default) or 5V |
| CTS | Input | Clear To Send, Active Low |
| GND | Supply Output | Ground (0V) supply |
