SKU: DBWF01002

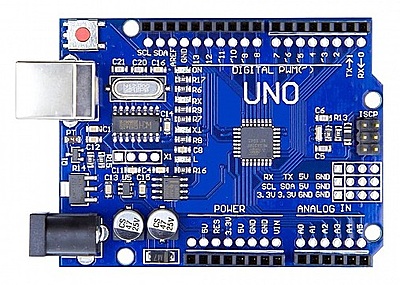

The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.
- Microcontroller ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 5-20V
- Digital I / O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
Package Includes: 1 x Uno R3 CH340G ATmega328p Development Board
1 x Cable for Arduino UNO (USB A to USB B) 1 Meter
₹449.00
Product Details
Product Details
Product Details
The Uno R3 CH340G ATmega328p Development Board is a popular microcontroller board designed for use with Arduino-compatible projects. It offers an affordable and versatile solution for electronics enthusiasts and hobbyists
Specifications:
- Microcontroller: ATmega328
- Working Freq.: 16MHz
- Flash: 32KB
- SRAM: 2KB
- EEPROM: 1KB
- Digital IO: 14
- PWM Channels: 6
- Analog Inputs: 6
- DC current / IO: 40mA
- DC current / IO: 50mA (3.3V)
- Input Voltage: 6V to 20V DC
- Interface: CH340G (USB Interface)
How to Use:
1. Download the IDE Arduino
Link: http://arduino.cc/en/Main/Software (Copy to open)
2. Download the USB chip driver
Link: http://www.5v.ru/zip/ch341ser.zip (Copy to open)
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the die
5. Select the COM port
6. The best choice first, Arduino comes with routine procedures, burn into it.
Note: Product images are for reference only. The actual product may vary from the images shown.
