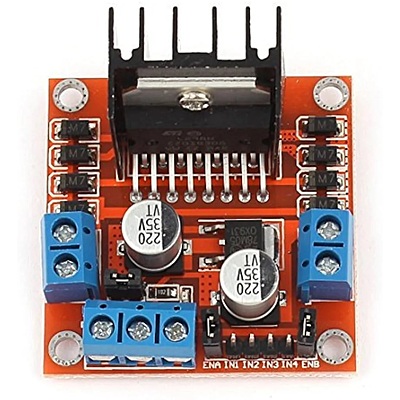

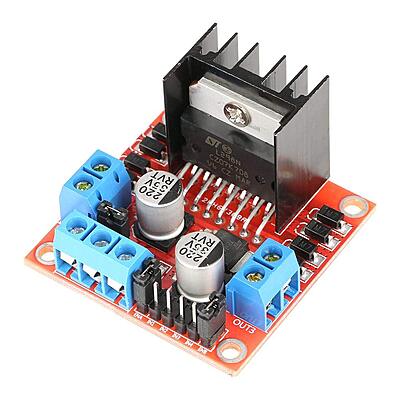

L298N 2A Based Motor Driver Module

The L298N IC is a high-power, dual H-Bridge motor driver that can control two DC motors independently in both forward and reverse directions.
The H-Bridge allows the voltage polarity applied to the motor to be reversed, enabling both forward and backward rotation.

Current Rating (2A):

The L298N motor driver module is rated to handle up to 2A of continuous current per motor, which makes it suitable for driving motors of moderate power.
It is also capable of providing up to 3A of peak current (for short bursts), useful for high-load applications like robotics or small vehicles.

Voltage Range:

The module can drive motors with a voltage range from 4.5V to 36V, which makes it compatible with a wide variety of DC motors and stepper motors commonly used in hobbyist projects.
The logic voltage for the IC is typically 5V, and it can be powered via the onboard 5V pin or by an external supply.

PWM (Pulse Width Modulation) Speed Control:

The module supports PWM control for regulating the speed of the connected motors. By adjusting the duty cycle of the PWM signal, you can control the motor’s speed from 0 to 100%.
This is crucial in applications like robotics, where precise motor speed control is often needed for movement and task execution.

Direction Control:

It has two input pins for each motor that control the direction of the motor's rotation (forward or reverse). By controlling the input pins, you can change the direction of the motor without needing to reverse the wiring or the power supply.

Built-in Diodes for Back EMF Protection:

The L298N motor driver has built-in flyback diodes that protect the circuit from damage due to back electromotive force (EMF) generated by the motors. Back EMF can occur when motors are suddenly stopped or if they experience any mechanical friction, and these diodes help prevent the damage from this electrical surge.

Enable Pins:

Each H-Bridge has an enable pin (ENA for motor 1 and ENB for motor 2), which allows the motor driver to be enabled or disabled. This can be useful if you want to turn off the motor without physically disconnecting the power.

Onboard Voltage Regulator:

The L298N module typically includes an onboard voltage regulator that provides 5V for powering the logic circuitry, which can be supplied through the same input power or through a separate 5V source.

Easy to Interface with Microcontrollers:

The L298N motor driver is easily interfaced with common microcontrollers like Arduino, Raspberry Pi, and ESP32/ESP8266. It uses simple digital input pins to control the direction and speed of the motors, making it perfect for beginner to intermediate-level robotics and automation projects.

Thermal Overload Protection:

The L298N IC features thermal shutdown capabilities, meaning that if the module gets too hot during operation, it will automatically shut down to prevent damage to the circuit.
